Hydro Pneumatic Rivet Tools

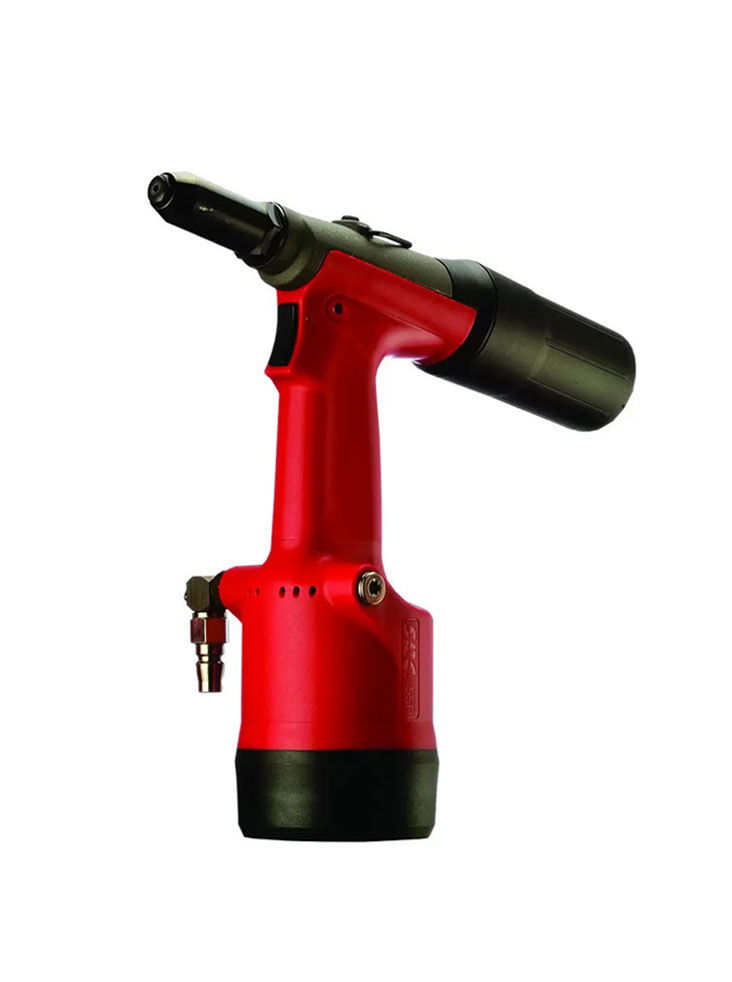

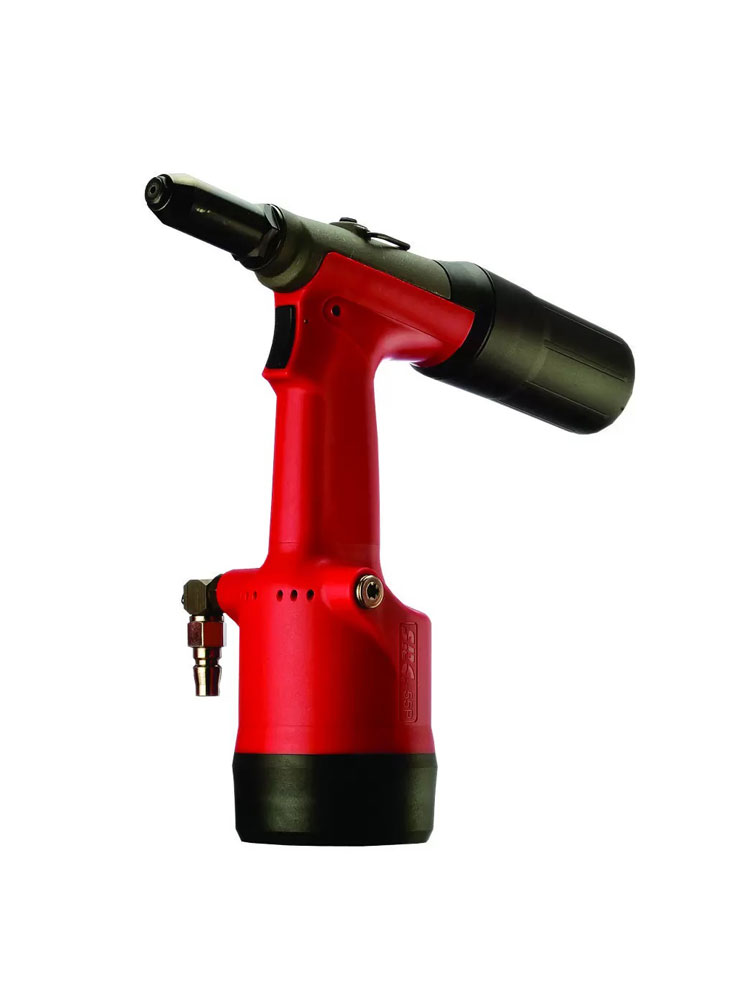

HYDRO PNEUMATIC RIVET TOOL WITHOUT VACCUM SYSTEM

ITEM NO	WEIGHT	AIR PRESSURE	STROKE	CAPACITY
SRC-55	1.5 KGS	70-90PSI	14MM	UPTO 4.8 MM FOR ALL MATERIAL & 6.4 MM FOR ALL MATERIAL
SRC-56	1.6KGS	70-90 PSI	14MM	UPTO 6.4 MM FOR ALL MATERIAL
SRC-55P	1.2KGS	70-90 PSI	18MM	UPTO 4.8 MM FOR ALL MATERIAL
SRC-56P	1.5KGS	70-90 PSI	20MM	4.0MM,4.8 MM AND 6.4 MM FOR ALL MATERIAL

ITEM NO	WEIGHT	AIR PRESSURE	STROKE	CAPACITY
SR-1	1.3 KGS	60-95PSI	20MM	UPTO 4.8 MM FOR ALL

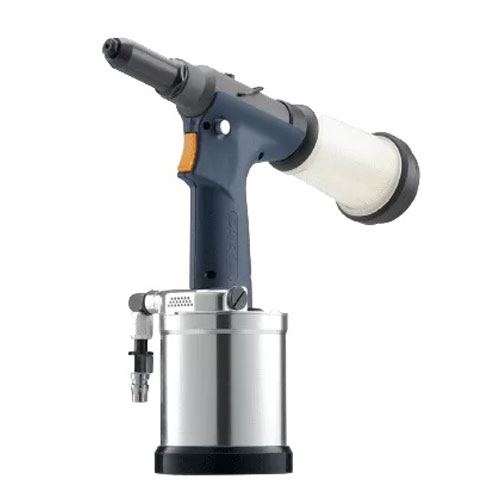

SR-2	1.45KGS	70-95 PSI	20MM	UPTO 4.8 MM FOR ALL & 4.8 MM MONOBOLT RIVET
SR-3	1.70KGS	70-905PSI	26MM	UPTO 6.4 MM FOR ALL & 6.4 MM MONOBOLT RIVET

ITEM NO	WEIGHT	AIR PRESSURE	STROKE	CAPACITY

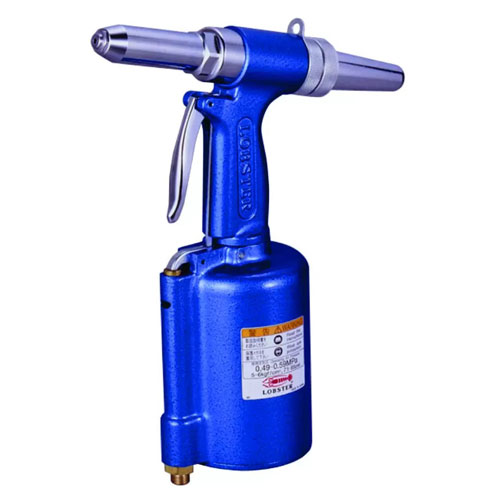

AR-011M	1.5 KGS	0.49-0.59Mpa	14MM	2.4 ,3.2 ,4.0 MM FOR ALL MATERIAL & 4.8 MM FOR ALUMINIUM

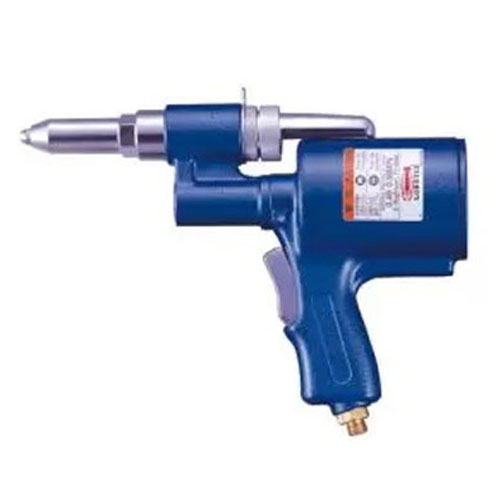

AR-011P	1.5 KGS	0.49-0.59Mpa	13MM	2.4 ,3.2 ,4.0 MM FOR ALL MATERIAL & 4.8 MM FOR ALUMINIUM

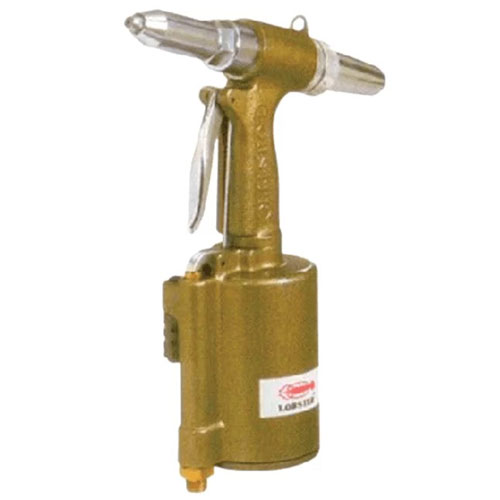

AR-021M	1.5 KGS	0.49-0.59Mpa	14MM	UPTO 4.8 MM FOR ALL MATERIAL
AR-021EX	2.9 KGS	0.59-0.64Mpa	26MM	4.8,6.4 MM MONOBOLT AND STRUCTURAL RIVETS

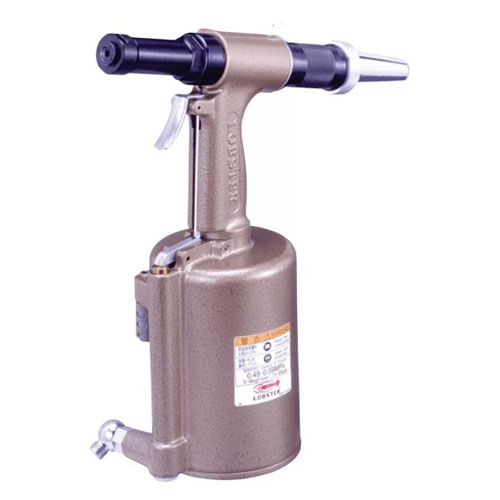

AR-021EXH	2.9 KGS	0.59-0.64Mpa	22MM	FOR 6.4 MAGNA LOCK STRUCTURAL RIVETS

ITEM NO	WEIGHT	AIR PRESSURE	STROKE	CAPACITY

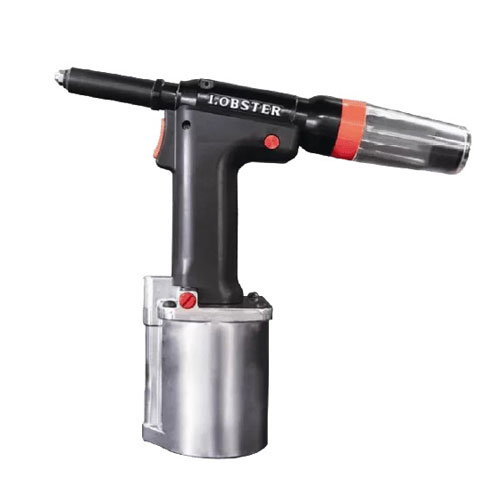

R1A1	1.09KGS	0.49-0.59Mpa	19MM	UPTO 4.8 MM FOR ALL MATERIAL

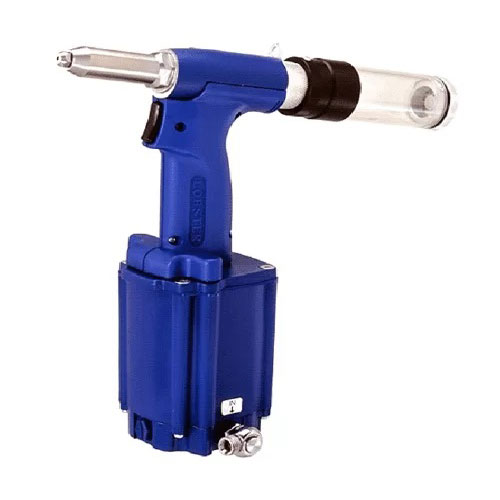

AR-2000MV	1.35KGS	0.49-0.59Mpa	16MM	UPTO 4.8 MM FOR ALL MATERIAL
AR-2000HV	1.80KGS	0.49-0.59Mpa	18MM	UPTO 4.8 , 6.4 MM MONOBOLT & STRUCTURAL RIVET
