S.D.S

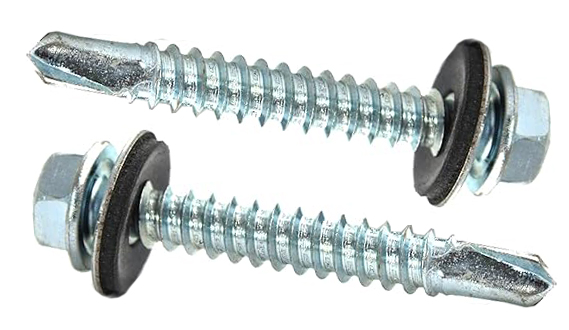

Hex Flange Head





Type AB thread,# 3 point With the EPDM washer
Material :C1022
CoatingYellow Zinc, Zinc



      Dia4.8 mm5.5 mm6.3 mm
Torsion Strength (LB/in.)61 min.92 min.150 min.
Case Hardness (HV/0.3Kg)560 – 730560 – 730560 – 730
Drilling Time (Sec.)7.011.013.0
Drilling Thickness2 + 22 + 32 + 3





DiaLength(L)
4.81619
5.5     –1925354555657590100125135150
6.3     –_25354555657590100125135150

Hex Washer Head

Type AB thread,# 3 point, With metal bonded washer
MaterialC1022
CoatingYellow Zinc, Zinc, Ruspert
Dia4.8 mm5.5 mm6.3 mm
Torsion Strength (LB/in.)61 min.92 min.150 min.
Case Hardness (HV/0.3Kg)560-730560 – 730560 – 730
Drilling Time (Sec.)7.011.013.0
Drilling Thickness2 + 22 + 32 + 3



DiaLenght(L)
4.81619
5.5     –1925354555657590100125135150
6.3     –_25354555657590100125135150

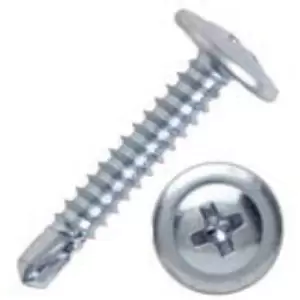

Truss Head

Dia4.2
Torsion Strength (LB/in.)39 min.
Case Hardness (HV/0.3Kg)560 – 730
Drilling Time (Sec.)5.0
Drilling Thickness1.5 + 1.5
Type AB thread,# 2 point
MaterialC1022
CoatingZinc, Black Phosphate
DiaLenght  (l)
4.2131619322532

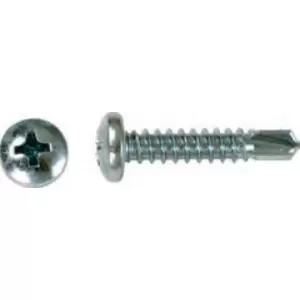

Pan Head

Type AB thread,# 2 point
MaterialC1022
Coating :Yellow Zinc, Zinc,
Dia3.54.24.8
Torsion Strength (LB/in.)24 min.39 min.56 min.
Case Hardness (HV/0.3Kg)560 – 730560 – 730560 – 730
Drilling Time (Sec.)4.05.07.0
Drilling Thickness1 + 11.5 + 1.52 + 2
Dia
3.510131619
4.2131619253238
4.8131619253238

CSK Flat Head

Type AB thread,# 2 point
MaterialC1022
CoatingYellow Zinc,Zinc
Dia3.5 mm4.2 mm4.8 mm
Torsion Strength (LB/in.)24 min.39 min.56 min.
Case Hardness (HV/0.3Kg)560 – 730560 – 730560 – 730
Drilling Time (Sec.)4.05.07.0
Drilling Thickness1 + 11 + 11 + 1
DiaLenght
3.510131619
4.2131619253238
4.8131619253238
